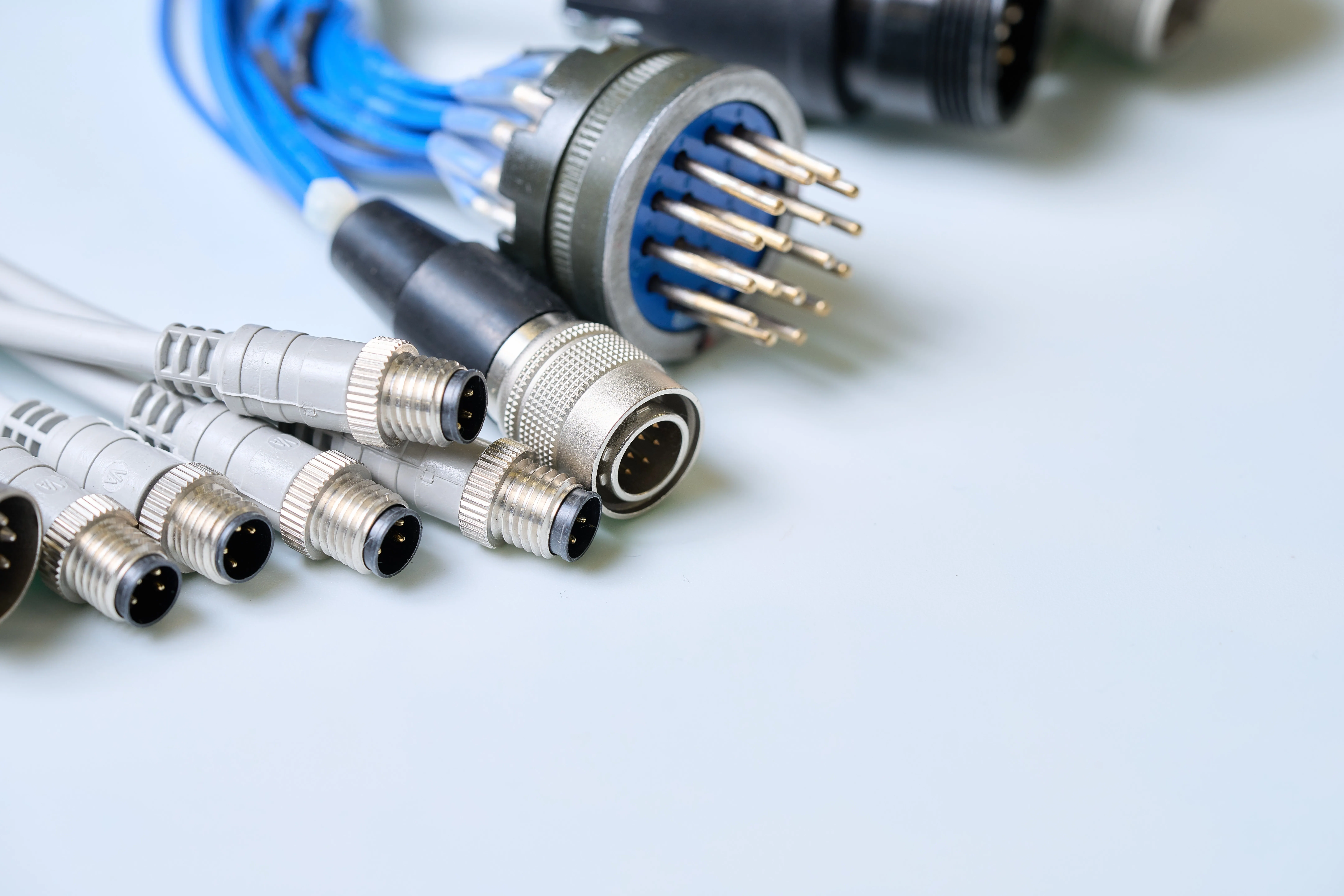

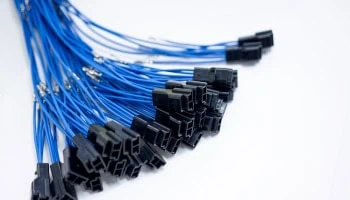

Cable & Wire Harness Assemblies, Cord Sets: Custom
Process Overview:
- IPC Certified
- ISO & RoHS Certified
- Build to Customer SCD:
- UL, ASTM, SAE, PPAP Level per SCD

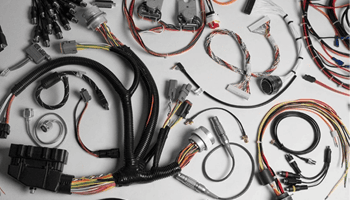

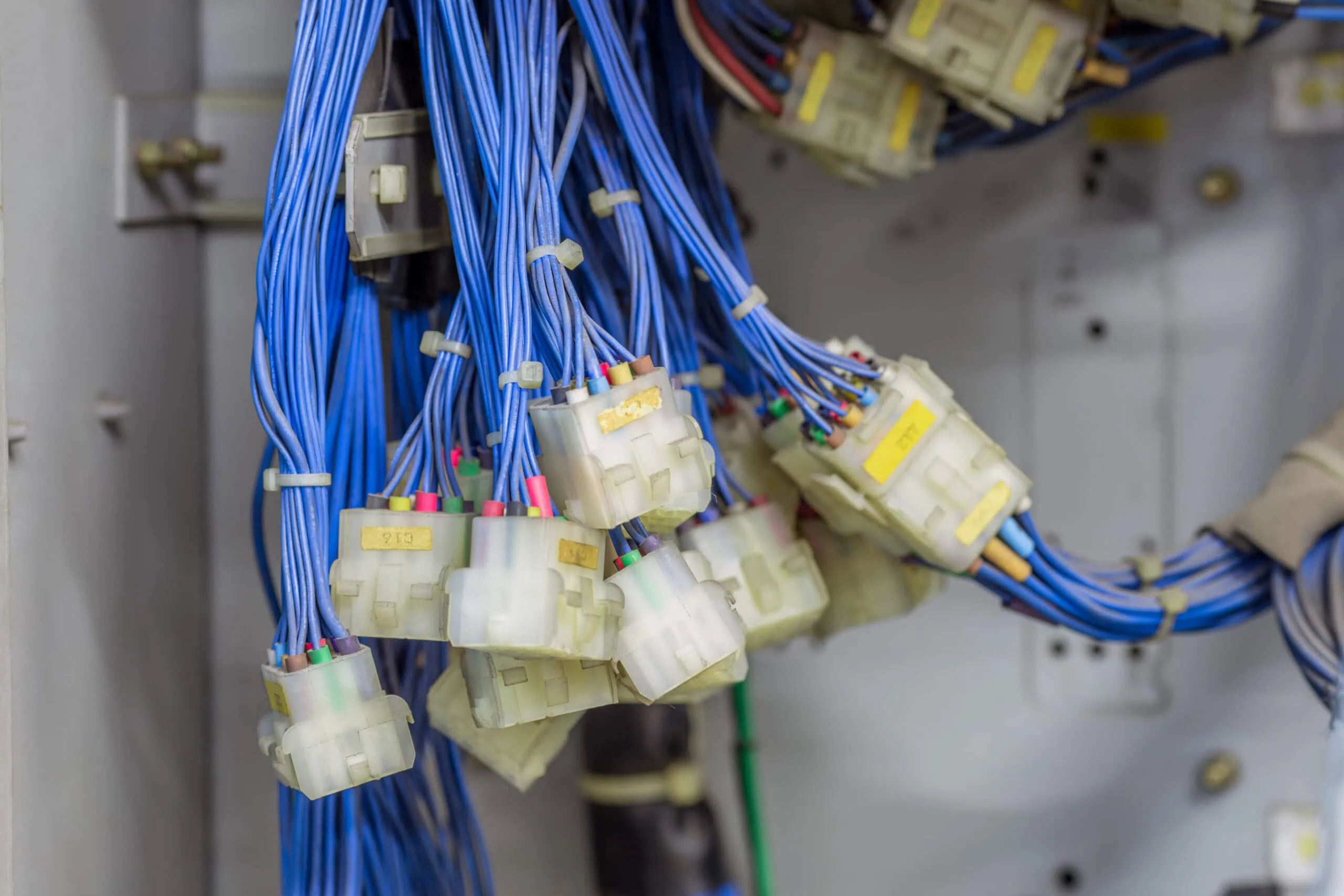

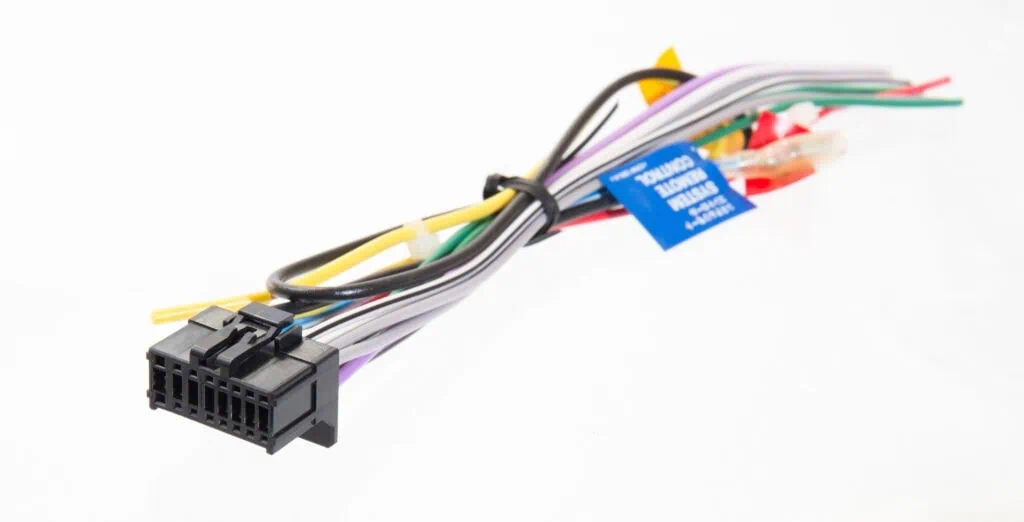

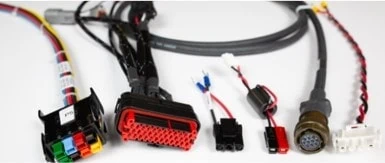

- Wire Harness Assembly

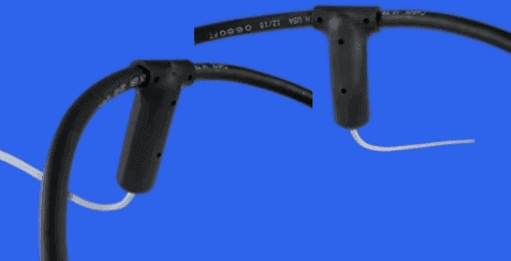

- Over-Molded Cable Assembly
- Electronic Assembly

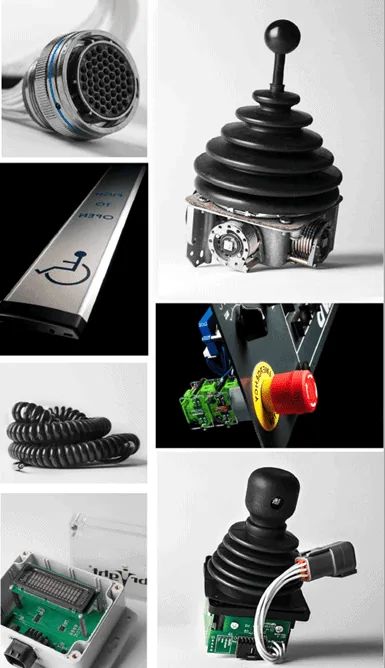

- Electro-Mechanical Assembly
- Potting
- Cut / Strip / Terminate

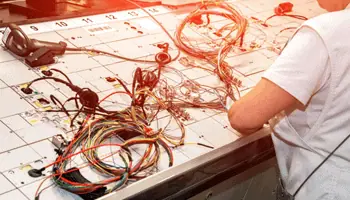

Harness Fabrication Capability:
| Cable Forming Equipment: |
|---|
| Cable Extruding |
| Spiral Shielding |
| Braided Shielding |
| Inner Wire Twisting |
| Al-Foil Wrapping |
| Strand Winding |
| Harness Fabrication Equipment: | Units, Each or Stations: |
|---|---|
| Molding Stations | 47 |
| Ultrasonic Welding | 3 |
| Welding (automatic) | 2 |
| Laser Welding | 2 |
| Cable Stripping Stations | 39 |
| Cable Cutting | 10 |
| Crimping Stations | 42 |
| Crimping (auto) | 8 |
| Wire Twisting | 2 |
| Manual Crimping Tools | 400 |
| Modular Plug Crimping | 2 |
| Manual Punching | 3 |
| Electric Punching | 3 |
| Cable-Winding (auto) | 1 |
| Shrink-Tube Heat (auto) | 1 |
| Oven | 3 |
Quality Test Capability:
| Cable & Harness Test & Reliability Equipment: | Units, Each or Stations: |
|---|---|
| Multifunctional Cable Tester | 37 |
| Hi-Pot Tester | 2 |
| Microscope | 22 |
| Tensile Tester | 1 |
| Cable Bending Tester | 1 |
| Tension Meter | 4 |
| Torsion Meter | 1 |
| Durometer | 1 |
| LCR Bridge | 2 |
| X-Ray Detector for Banned Substances | 1 |
| Cable & Harness Test & Reliability Equipment: | Units, Each or Stations: |
|---|---|
| Pull & Push Force Tester | 2 |
| Regulated DC Power Supply | 5 |
| High-Voltage Holding Tester | 2 |
| Network Analyzer | 1 |
| Salt Spray Test Chamber | 1 |
| Vibration Tester for Simulation of Auto Transportation | 1 |
| Temperature & Humidity Test Chamber | 1 |
| Cable & Wire Elongation Tester | 1 |
| Air-Leakage Detector | 1 |
| Image Measuring Instrument | 1 |
Industries Served:
Military
Industrial
Automotive
Medical
Controls
Appliances
Robotics
Telecom
Affiliated Processes:
Injection Molding
Vacuum Forming
PCBA

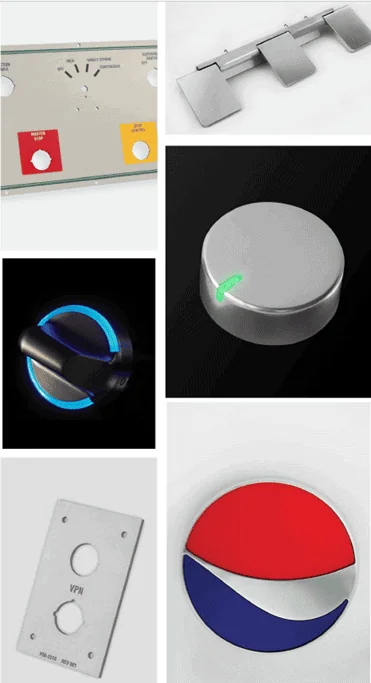

Specialty Finishing
Rapid Prototyping
3D Printing

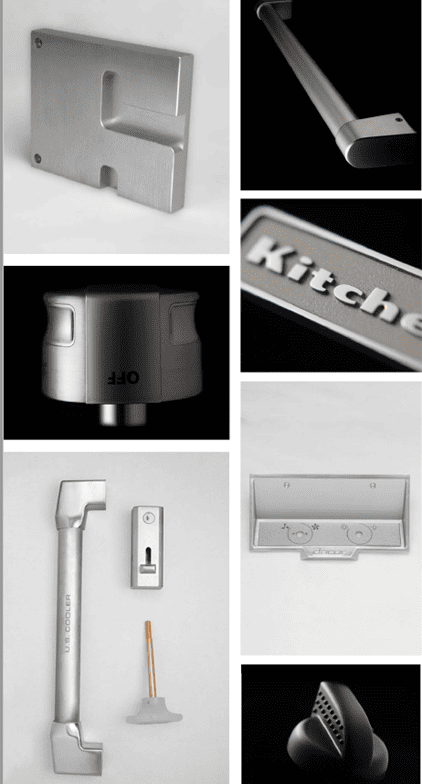

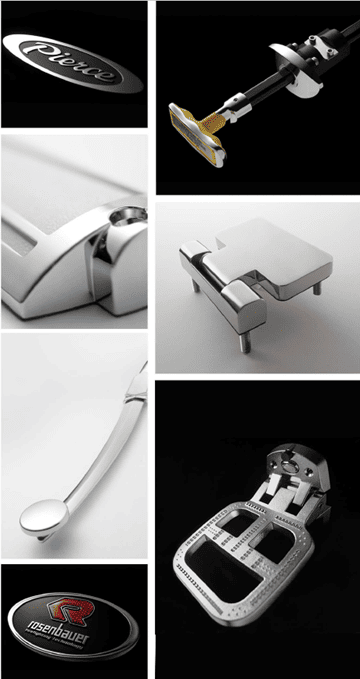

Metal Casting
Production sites in Asia, Philippines and China
Quality Test Capability:
Cable & Harness Test & Reliability Equipment:
- Multifunctional Cable Tester
- Hi-Pot Tester
- Microscope
- Tensile Tester
- Cable Bending Tester
- Tension Meter
- Torsion Meter
- Durometer
- LCR Bridge
- X-Ray Detector for Banned Substances
- Pull & Push Force Tester
- Regulated DC Power Supply
- High-Voltage Holding Tester
- Network Analyzer
- Salt Spray Test Chamber
- Vibration Tester for Simulation of Auto Transportation
- Temperature & Humidity Test Chamber
- Cable & Wire Elongation Tester
- Air-Leakage Detector
- Image Measuring Instrument
